Surgical Cotton Roll Making processing line without Bleaching
6400000 INR/Ton
Product Details:
- Accuracy 1 mm
- Model No SCRL-300NB
- Operating Temperature 10C-45C
- Lubricating System Automatic Lubrication
- Production Capacity 250-350 kg/hr
- Drive Electric Motor with Inverter
- Machine Type Cotton Roll Forming & Slitting Line
- Click to view more
X
Surgical Cotton Roll Making processing line without Bleaching Price And Quantity
- 1 Ton
- 6400000 INR/Ton
Surgical Cotton Roll Making processing line without Bleaching Product Specifications
- 1 mm
- Manufacturing of Surgical Cotton Rolls, Medical Supplies
- 10C-45C
- SCRL-300NB
- 7.5 kW
- Automatic
- Electric
- Automatic Lubrication
- 250-350 kg/hr
- Cotton Roll Forming & Slitting Line
- Electric Motor with Inverter
- 4800mm x 1200mm x 1800mm
- 7.5 kW
- 380V/50Hz
- 3.5 kW (Main drive)
- Heavy-duty Mild Steel Frame
- Standard Input/Output ports, Ethernet (optional)
- Mechanical and Pneumatic Integration
- Powder Coated
- Non-bleaching process, High efficiency, User-friendly interface, Low Maintenance
- Standard atmospheric
- Surgical Cotton Roll Making processing line without Bleaching
- 1600
- 50 Hz
- Air Cooling
- PLC Control Panel
- White/Grey
- <75 dB
- Compressed Air 0.4-0.6MPa
- Motorized
- Automatic Pneumatic Cutter
- Dry & Clean Environment
- 1-2 persons
- 60 mm
- 100g to 1kg
- 30 mm to 120 mm
- Integrated
- Digital Display Alarm
- Optional Semi-automatic Packing attachment
- Onsite/Remote
- Emergency stop, Interlock Guards
- Yes
- Medical Grade Cotton
- Touch Screen HMI
- Manual or Semi-Automatic
- 85% RH
Product Description

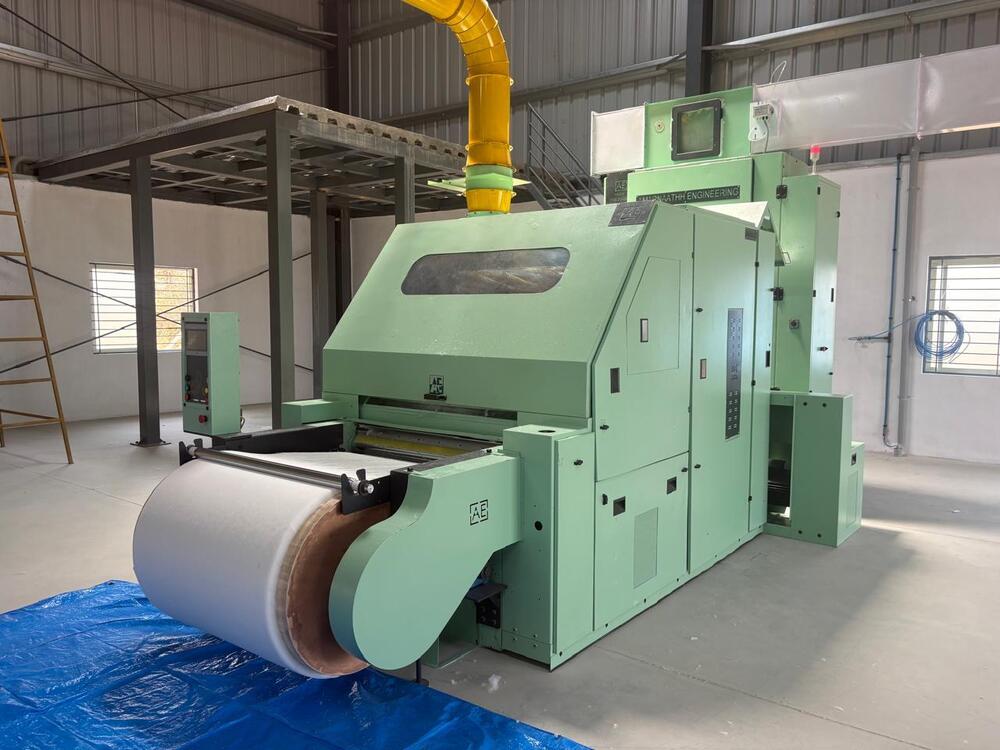

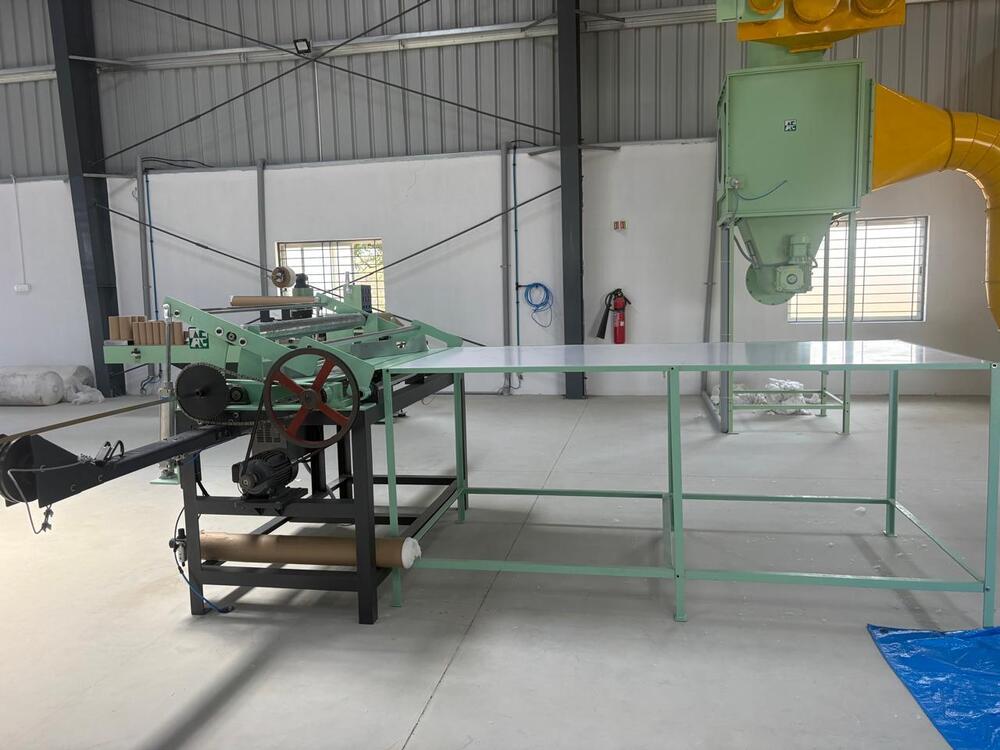

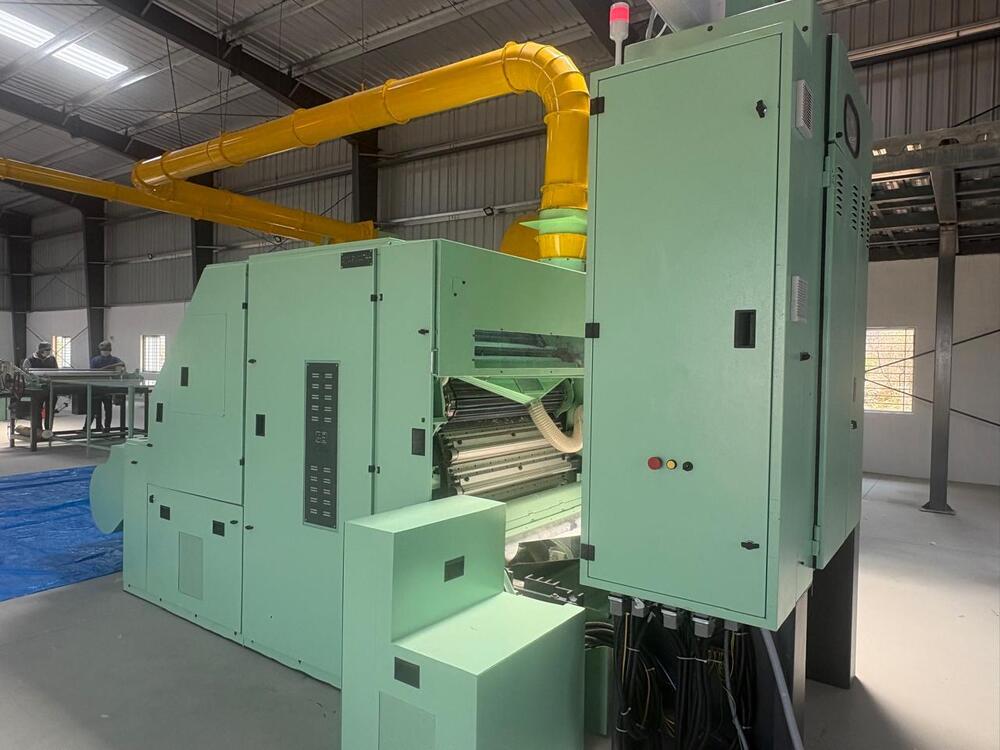

Amarnaathh Engineering offers a highperformance Surgical Cotton Roll Processing Line without Bleaching designed for efficient conversion of absorbent cotton into premiumquality surgical cotton rolls while preserving the natural fiber characteristics This processing line is engineered for hospitals medical textile manufacturers and healthcare product industries requiring hygienic and highproduction operations without chemical bleaching treatment
The line includes cotton opening cleaning lap forming rolling cutting and packaging support systems to ensure smooth and continuous production flow Manufactured with heavyduty construction and precisionengineered components the machine delivers uniform roll density superior softness and excellent absorbency standards suitable for medical applications
Our Surgical Cotton Roll Processing Line ensures low power consumption reduced maintenance stable performance and high operational efficiency The automationfriendly design minimizes labor dependency while maximizing output consistency This nonbleaching process helps maintain fiber integrity and supports costeffective production for manufacturers focused on natural or semiprocessed surgical cotton products
Amarnaathh Engineering focuses on robust manufacturing standards userfriendly controls and long service life making this processing line a reliable investment for modern medical textile production facilities
Process Flow

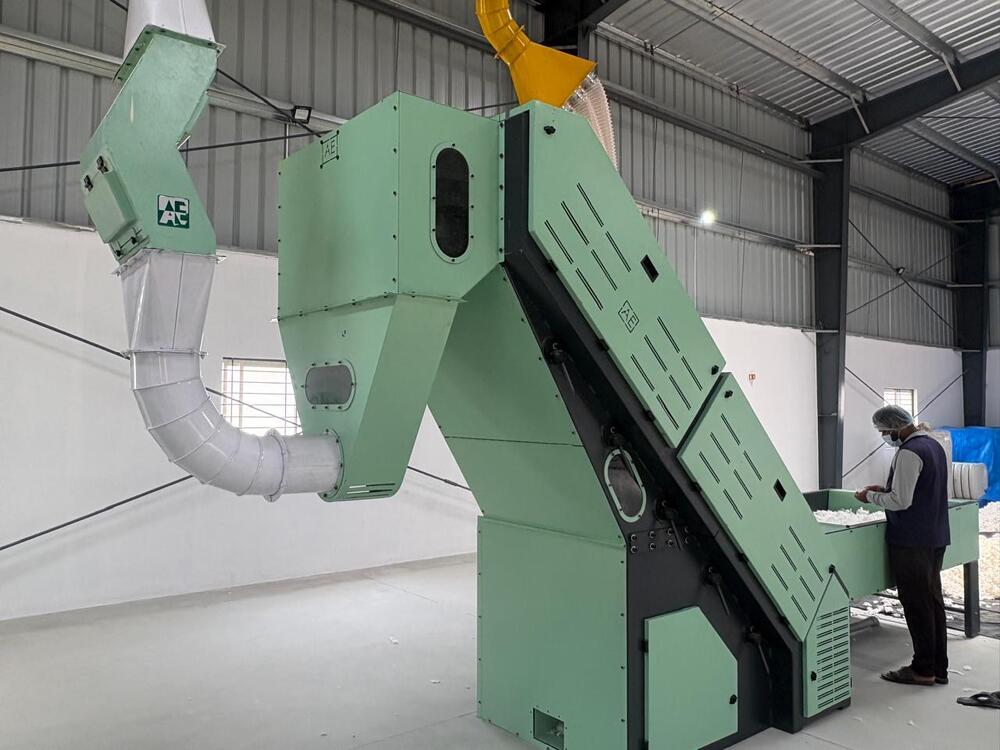

Raw Cotton Feeding Cotton Opening Cleaning Process Fiber Condensing Lap Forming Cotton Rolling Roll Cutting Weight Checking Packing Final Dispatch
Advanced Non-Bleaching Technology
This processing line uses a non-bleaching method, preserving the natural purity of medical-grade cotton and making it ideal for sensitive medical applications. The process safeguards cotton properties while fulfilling rigorous hygiene standards for surgical and clinical uses.
User-Centric and Efficient Design
With its intuitive touch screen HMI and PLC-based automation, the machine allows for effortless monitoring and control. Minimal operator intervention, automated roll cutting, and simple maintenance routines ensure both efficiency and ease of use.
Robust Construction and Safety Features
Built on a heavy-duty powder-coated mild steel frame, the machine ensures stability and longevity. Safety is prioritized with emergency stops, interlock guards, and a digital display alarm system. Integrated dust collection and air cooling support optimal working conditions.
FAQ's of Surgical Cotton Roll Making processing line without Bleaching:
Q: How does the cotton roll making line operate without a bleaching process?
A: The cotton roll making line employs a non-bleaching process, which means it processes medical-grade cotton without using chemicals to alter its natural color or properties. This method preserves the fiber's integrity and is suitable for sensitive medical applications.Q: What are the raw material and environmental requirements for optimal operation?
A: The machine requires medical-grade cotton slivers with a minimum input width of 60 mm. Optimal operation needs a dry, clean environment with a humidity tolerance up to 85% RH and a temperature range between 10C and 45C.Q: Where can this processing line be installed and by whom?
A: Installation can be performed onsite or remotely with support from the supplier or manufacturer. The machine is suitable for medical supply manufacturers, hospitals, and cotton product exporters across India and abroad.Q: What is the production capacity and what sizes of rolls can it produce?
A: The line offers a production capacity of 250-350 kg per hour and can form rolls with diameters ranging from 30mm to 120mm, with each roll weighing between 100g and 1kg.Q: How user-friendly is the machine for operators?
A: With an advanced touch screen HMI and PLC control, the machine is simple to operate and needs only 1-2 operators. A digital display alarm system and automatic lubrication reduce manual effort and improve ease of maintenance.Q: What are the main benefits of the integrated dust collection and safety systems?
A: The integrated dust collection system keeps the production environment clean, reducing airborne lint and contamination risk, while emergency stop functions and interlock guards ensure operator safety during every phase of production.Q: Are replacement parts and packaging attachments available?
A: Yes. Replacement parts are readily available through the manufacturer or supplier. Optional semi-automatic packaging attachments are also supported for streamlined packing of finished cotton rolls.Tell us about your requirement
